| Application: |
The two-conductor Interbus-Loop cable is to be applied as a data transmission cable as well as for the supply of sensors. The three-conductor Interbus-Loop cables is applied for supply of actuators. These cables are also suitable for Interbus-Loop 2. |

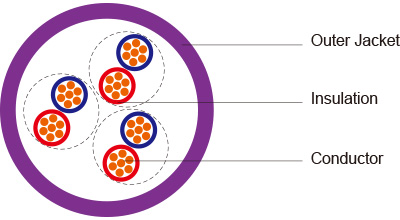

Construction:
| Type | 2 pairs/ 3 pairs interbus Loop cable |
| Inner Conductor: | Bare copper conductors 1.5mm² |
| Conductor Insulation | PE |
| Stranding Element | Specially adjusted layering with netting tape and one additional non-woven tape over the outer layer |
| Core Wrapping | - |
| Shielding | - |
| Drain Wire: | - |
| Outer Jacket Material | PVC/ PUR/ FRNC |
| Conductor identification | Blue, red |
| Sheath colour | Purple |
Electrical Data:
| Characteristic Impedance@250MHz - 10MHz | 75 Ω ± 15 Ω |
| Radiation Resistance | 5 x 107 cJ/kg |
| Weather Resistance | Very good |
| Working Voltage | Max: 350V |
| Test Voltage | 1KV |
Technical Data:
| Weight: | approximately 78.0 kg/km | approximately 94.0 kg/km |
| Min. Bending Radius | 15 x OD mm | |
| Operating Temp.Range, min. | - 40 °C(flexing)/ - 50 °C(static) | |
| Operating Temp.Range, max. | +90 °C | |
