300/500V Mica+XLPE Insulated Individual And Overall Screened fire resistant Instrumentation Cables

RE-2X(St)H PiMF...CI. FE 180 PH30 ( CU/MGT+XLPE/IS/OS/LSZH 300/500V Class 2 )
RE-2G(St)H PiMF...CI. FE 180 PH 30 ( CU/SR/IS/OS/LSZH 300/500V Class 2 )
RE-2X(St)HSWAH PiMF..CI. FE 180 PH 30 ( CU/MGT+XLPE/IS/OS/LSZH/SWA/LSZH 300/500V Class 2 )
RE-2G(St)HSWAH PiMF...CI. FE 180 PH 30 ( CU/SR/IS/OS/LSZH/SWA/LSZH 300/500V Class 2 )

14 300500V MicaXLPE Insulated Individual And Overall Screened Instrumentation Cables

Application:

The cables are designed, manufactured and tested as data transmission cables for emergency services. These are used for data and voice transmission when high frequency signal has to be assured also in the event of a fire.

STANDARDS:

Basic design to BS 5308/BS 7629-1

FIRE PERFORMANCE

Circuit Integrity

IEC 60331-21; BS 6387 CWZ; DIN VDE 0472-814(FE180);

BS 8434-1 (30mins); BS 5839-1 Clause 26 2d; CEI 20-36/2-1; SS229-1; NBN C 30-004 (cat. F3); NF C32-070-2.3(CR1)

Circuit Integrity with mechanical shock

EN 50200(PH30); CEI 20-36/4-0

Circuit Integrity with mechanical shock & water spray

EN 50200 annex E

System circuit integrity

DIN 4102-12, E30 depending on lay system

Flame Retardance (Single Vertical

Wire Test)

EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2;

VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*

Reduced Fire Propagation

(Vertically-mounted bundled wires

& cable test)

EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Halogen Free

IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*

No Corrosive Gas Emission

IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*

Minimum Smoke Emission

IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*

No Toxic gases

NES 02-713; NF C 20-454

Note: Asterisk * denotes superseded standard.

VOLTAGE RATING

300/500 V

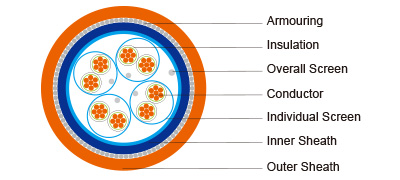

CABLE CONSTRUCTION

Conductor: Plain annealed copper wire, stranded according to IEC(EN) 60228 class 2.

Insulation: Mica glass tape covered by extruded cross-linked XLPE compound or fire resistant

silicone rubber compound type EI2 as per BS 7655-1.1.

Cabling Elements: Insulated cores are twisted to form pairs with varying lay length to minimize

crosstalk. Two-pair cable had four cores laid in quad formation.

Cabling: Pairs are cabled together.In cables with 8 pairs or more, 4 pairs are assembled to form a

bunch, the bunches are then cabled together.

Individual Screen: Aluminum/polyester tape with 0.5mm2 screen (7/0.3mm) tinned copper drain

wire.

Overall Screen: Aluminum/polyester tape with 0.5mm2 screen (7/0.3mm) tinned copper drain wire.

Inner Sheath(optional): Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1

Armouring(optional): Galvanized steel wire armour

Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1( Thermosetting LSZH

compound type SW2-SW4 as per BS 7655-2.6 can be offered.)

COLOUR CODE

Insulation Colour: White with black numberings.

Sheath Colour: Orange (other colours on request).

TYPE CODE

RE- Instrumentation cable H Halogen free & zero halogen

2X XLPE 2G Silicon Rubber

(St) Static shield of aluminium tape SWA Steel Wire Armoured

FE180 Insulation integrity (950°C 180 minutes) CI Circuit integrity

PH 90 Fire Test for 90 mins at 830°C

Physical AND THERMAL PROPERTIES

Temperature range during operation (fixed state): -30°C – +70°C

Temperature range during installation (mobile state): -20°C – +50°C

Minimum bending radius: 6 x Overall Diameter (unarmoured cables with silicone rubber insulation)

8 x Overall Diameter (unarmoured cables with XLPE insulation)

10 x Overall Diameter (armoured cables)

Electrical PROPERTIES

Dielectric test:

2000 V r.m.s. x 5' (core/core)

Insulation resistance

≥1000 MΩ x km (at 20°C);

Short circuit temperature

XLPE: 250°C

SR: 350°C

CONSTRUCTION PARAMETERS

Conductor



RE-2X(St)H PiMF...CI. FE 180 PH30

RE-2G(St)H PiMF...CI. FE 180 PH30

RE-2X(St)HSWAH PiMF..CI. FE 180 PH30

RE-2G(St)HSWAH PiMF..CI. FE 180 PH30

No. of Pairs

X Cross

Section

No./ Nominal Diameter of Strands

Nominal Insulation Thickness

Unarmoured

Armoured

Nominal Overall Diameter

Approx. Weight

Diameter Under Armour

Armour Wire Diameter

Nominal Overall Diameter

Approx. Weight

mm2

no./mm

mm

mm

kg/km

mm

mm

mm

kg/km

2 Pairs

2X2x1.0

7/0.43

0.6

15.2

166

15.2

0.90

20.0

555

2X2x1.5

7/0.53

0.7

17.0

205

17.0

1.25

22.7

769

2X2x2.5

7/0.67

0.8

19.2

350

19.2

1.25

24.9

938

5 Pairs

5X2x1.0

7/0.43

0.6

17.5

335

17.5

1.25

23.2

1000

5X2x1.5

7/0.53

0.7

21.5

433

21.5

1.60

28.1

1352

5X2x2.5

7/0.67

0.8

24.0

592

24.0

1.60

30.8

1665

10 Pairs

10X2x1.0

7/0.43

0.6

22.5

626

22.5

1.60

29.3

1800

10X2x1.5

7/0.53

0.7

28.0

811

28.0

1.60

35.0

2165

10X2x2.5

7/0.67

0.8

31.5

1132

31.5

2.00

39.5

3007

20 Pairs

20X2x1.0

7/0.43

0.6

30.5

1143

30.5

2.00

38.5

3019

20X2x1.5

7/0.53

0.7

38.0

1509

38.0

2.00

46.2

3684

20X2x2.5

7/0.67

0.8

42.5

2112

42.5

2.50

51.9

5107

Note : Other conductor sizes & core configurations are available upon request.
