| Application | These armoured cables are used on board of ships in all locations for fixed installations where cable protection is required. These cables are flame retardant, low smoke & halogen free, suitable for installations on passenger ships, as on other commercial vessels. |
| Standards | DIN 89159/98 IEC 60092-351/375/359 IEC 60332-1 IEC 60332-3-22 IEC 60754-1/2 IEC 61034 |

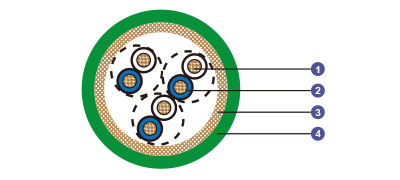

| Construction | |
| Conductors | Stranded copper conductor. |
| Insulation | HEPR. |
| Cabling Element | Pair. |
| Armour | Copper wire braid. |
| Outer Sheath | LSOH (SHF1). |
| Core Identification | Pair: white/ blue with printed pair number and core number. |
| Mechanical and Thermal Properties | Bending Radius for Fixed Installations: 6×OD Temperature Range: -30℃ ~ +75℃ |
Dimensions and Weight
|
Part No. |
Construction No. of elements×No. of cores in element×Cross section(mm²) |
Nominal Insulation Thickness mm |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
|
M092-RE-3GCH-1P0.75 |
1×2×0.75 |
0.5 |
1.2 |
8.5 |
90 |
|
M092-RE-3GCH-2P0.75 |
2×2×0.75* |
0.5 |
1.3 |
9.5 |
130 |
|
M092-RE-3GCH-4P0.75 |
4×2×0.75 |
0.5 |
1.4 |
13.0 |
230 |
|
M092-RE-3GCH-7P0.75 |
7×2×0.75 |
0.5 |
1.8 |
15.5 |
340 |
|
M092-RE-3GCH-10P0.75 |
10×2×0.75 |
0.5 |
1.9 |
18.5 |
470 |
|
M092-RE-3GCH-14P0.75 |
14×2×0.75 |
0.5 |
2.0 |
21.0 |
610 |
|
M092-RE-3GCH-19P0.75 |
19×2×0.75 |
0.5 |
2.1 |
23.5 |
770 |
|
M092-RE-3GCH-24P0.75 |
24×2×0.75 |
0.5 |
2.2 |
26.5 |
950 |
*: 2 pairs are assembled as a quad.
