| Applications | These cables are designed for general use where baregrounding conductors are not required ordesired . |
| Standards | ICEA S-75-381/NEMA WC 58 ASTM B 172 ASTM B 33 CAN/CSA C22.2 No. 96 |

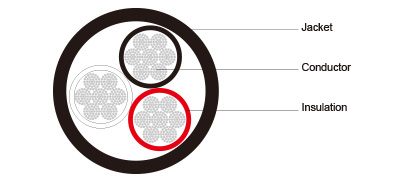

| Construction | |
| Conductors | Stranded annealed tinned copper conductor. |
| Insulation | Ethylene Propylene Rubber (EPR). |
| Sheath | Reinforced heavy-duty/extra-heavy-duty Chlorinated Polyethylene (CPE), black. (Cables having a nominal outside diameter of more than 2.0 inches require extra-heavy-duty jackets.) |
| Options | Other jacket materials such as CSP/PCP/NBR/PVC are available upon request. Two-layer jacket with reinforcing fibre between the two layers can be offered as an option. |
| Mechanical and Thermal Properties | Minimum Bending Radius: 6×OD Maximum Operating Temperature: +90℃ |
Dimensions and Weight:
|
Construction |
No. of Strands |
Nominal Insulation Thickness |
Nominal Jacket Thickness |
Nominal Overall Diameter |
Nominal Weight |
Ampacity |
||||
|
No. of cores×AWG/kcmil |
- |
inch |
mm |
inch |
mm |
inch |
mm |
lbs/kft |
kg/km |
A |
|
3×8 |
133 |
0.06 |
1.5 |
0.125 |
3.2 |
0.91 |
23.1 |
550 |
818 |
59 |
|
3×6 |
133 |
0.06 |
1.5 |
0.140 |
3.6 |
1.01 |
25.7 |
730 |
1086 |
79 |
|
3×4 |
259 |
0.06 |
1.5 |
0.155 |
3.9 |
1.17 |
29.7 |
1020 |
1518 |
104 |
|
3×2 |
259 |
0.06 |
1.5 |
0.155 |
3.9 |
1.34 |
34.0 |
1430 |
2128 |
138 |
|
3×1 |
259 |
0.08 |
2.0 |
0.170 |
4.3 |
1.51 |
38.4 |
1800 |
2678 |
161 |
|
3×1/0 |
266 |
0.08 |
2.0 |
0.170 |
4.3 |
1.65 |
41.9 |
2140 |
3184 |
186 |
|
3×2/0 |
342 |
0.08 |
2.0 |
0.190 |
4.8 |
1.75 |
44.5 |
2580 |
3839 |
215 |
|
3×3/0 |
418 |
0.08 |
2.0 |
0.190 |
4.8 |
1.89 |
48.0 |
2922 |
4347 |
249 |
|
3×4/0 |
532 |
0.08 |
2.0 |
0.205 |
5.2 |
2.04 |
51.8 |
3800 |
5654 |
287 |
|
3×250 |
741 |
0.095 |
2.4 |
0.220 |
5.6 |
2.39 |
60.7 |
4368 |
6500 |
320 |
|
3×350 |
888 |
0.095 |
2.4 |
0.235 |
6.0 |
2.66 |
67.5 |
5895 |
8772 |
394 |
|
3×500 |
1221 |
0.095 |
2.4 |
0.250 |
6.4 |
2.98 |
75.8 |
7820 |
11638 |
487 |
Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
