| Applications | These cables are designed for use with mobile mining equipment, such as continuous miners, cutting or loading machines, conveyors, drills or pumps. |
| Standards | ICEA S-75-381/NEMA WC 58 ASTM B 172 ASTM B 33 CAN/CSA C22.2 No. 96 |

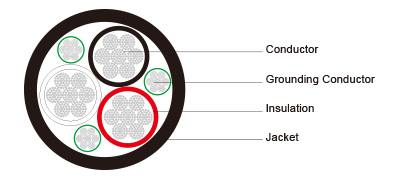

| Construction | |
| Conductors | Stranded annealed tinned copper conductor. |
| Insulation | Ethylene Propylene Rubber (EPR). |
| Grounding Conductor | Tinned copper conductor with a green outer covering. |
| Jacket | Reinforced heavy-duty/extra-heavy-duty Chlorinated Polyethylene (CPE), black. (Cables having a nominal outside diameter of more than 2.0 inches require extra-heavy-duty jackets.) |
| Options | Other jacket materials such as CSP/PCP/NBR/PVC are available upon request. Two-layer jacket with reinforcing fibre between the two layers can be offered as an option. |
| Mechanical and Thermal Properties | Minimum Bending Radius: 6×OD Maximum Operating Temperature: +90℃ |
Dimensions and Weight:
|
Construction |
No. of Strands |
Grounding Conductor Size |
Nominal Insulation Thickness |
Nominal Jacket Thickness |
Nominal Overall Diameter |
Nominal Weight |
Ampacity |
||||
|
No. of cores×AWG/kcmil |
- |
AWG/kcmil |
inch |
mm |
inch |
mm |
inch |
mm |
lbs/kft |
kg/km |
A |
|
3×8 |
133 |
10 |
0.06 |
1.5 |
0.125 |
3.2 |
0.91 |
23.1 |
590 |
878 |
59 |
|
3×6 |
168 |
10 |
0.06 |
1.5 |
0.140 |
3.6 |
1.01 |
25.7 |
760 |
1131 |
79 |
|
3×4 |
259 |
8 |
0.06 |
1.5 |
0.155 |
3.9 |
1.17 |
29.7 |
1070 |
1592 |
104 |
|
3×3 |
329 |
8 |
0.06 |
1.5 |
0.155 |
3.9 |
1.24 |
31.5 |
1280 |
1904 |
120 |
|
3×2 |
259 |
8 |
0.06 |
1.5 |
0.155 |
3.9 |
1.34 |
34.0 |
1530 |
2276 |
138 |
|
3×1 |
329 |
7 |
0.08 |
2.0 |
0.170 |
4.3 |
1.51 |
38.4 |
1890 |
2812 |
161 |
|
3×1/0 |
259 |
6 |
0.08 |
2.0 |
0.170 |
4.3 |
1.65 |
41.9 |
2320 |
3452 |
186 |
|
3×2/0 |
329 |
5 |
0.08 |
2.0 |
0.190 |
4.8 |
1.75 |
44.5 |
2700 |
4017 |
215 |
|
3×3/0 |
413 |
4 |
0.08 |
2.0 |
0.190 |
4.8 |
1.89 |
48.0 |
3270 |
4865 |
249 |
|
3×4/0 |
532 |
3 |
0.08 |
2.0 |
0.205 |
5.2 |
2.04 |
51.8 |
3970 |
5907 |
287 |
|
3×250 |
608 |
2 |
0.095 |
2.4 |
0.220 |
5.6 |
2.39 |
60.7 |
5080 |
7558 |
320 |
|
3×300 |
741 |
1 |
0.095 |
2.4 |
0.235 |
6.0 |
2.56 |
65.0 |
6080 |
9046 |
357 |
|
3×350 |
855 |
1 |
0.095 |
2.4 |
0.235 |
6.0 |
2.68 |
68.1 |
7140 |
10623 |
394 |
|
3×400 |
988 |
1/0 |
0.095 |
2.4 |
0.250 |
6.4 |
2.82 |
71.6 |
7780 |
11575 |
430 |
|
3×500 |
1221 |
2/0 |
0.095 |
2.4 |
0.250 |
6.4 |
3.03 |
77.0 |
9065 |
13487 |
487 |
Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
