| Applications | These heavy duty cables are designed for applications such as longwall shearers, continuous miners and mobile equipment such as shovels, dredges and drills. |
| Standards | ICEA S-75-381/NEMA WC 58 ASTM B 172 ASTM B 33 CAN/CSA C22.2 No. 96 |

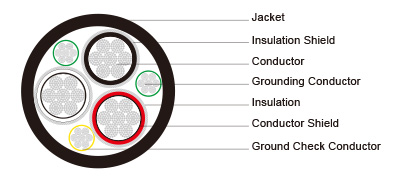

| Construction | |
| Conductors | Stranded annealed tinned copper conductor. |
| Conductor Shield | Semi-conducting layer. |
| Insulation | Ethylene Propylene Rubber (EPR). |
| Insulation Shield | Conducting tape + Tinned copper/textile braid. |
| Ground Check Conductor | Tinned copper with a yellow polypropylene insulation. |
| Grounding Conductor | Tinned copper conductor. |
| Jacket | Reinforced extra-heavy-duty Chlorinated Polyethylene(CPE), black. |
| Options | Other jacket materials such as CSP/PCP/NBR/PVC are available upon request. Two-layer jacket with reinforcing fibre between the two layers can be offered as an option. |
| Mechanical and Thermal Properties | Minimum Bending Radius: 6×OD Maximum Operating Temperature: +90℃ |
Dimensions and Weight:
|
Construction |
No. of Strands |
Grounding Conductor Size |
Ground Check Conductor Size |
Nominal Insulation Thickness |
Nominal Jacket Thickness |
Nominal Overall Diameter |
Nominal Weight |
Ampacity |
||||
|
No. of cores×AWG/kcmil |
- |
AWG/kcmil |
AWG/kcmil |
inch |
mm |
inch |
mm |
inch |
mm |
lbs/kft |
kg/km |
A |
|
3×4 |
259 |
8 |
8 |
0.150 |
3.8 |
0.205 |
5.2 |
1.94 |
49.3 |
2308 |
3594 |
122 |
|
3×2 |
259 |
6 |
8 |
0.150 |
3.8 |
0.220 |
5.6 |
2.12 |
53.8 |
2920 |
4554 |
159 |
|
3×1 |
329 |
5 |
8 |
0.150 |
3.8 |
0.220 |
5.6 |
2.21 |
56.1 |
3292 |
5104 |
184 |
|
3×1/0 |
259 |
4 |
8 |
0.150 |
3.8 |
0.220 |
5.6 |
2.32 |
58.9 |
3675 |
5700 |
211 |
|
3×2/0 |
329 |
3 |
8 |
0.150 |
3.8 |
0.235 |
6.0 |
2.46 |
62.5 |
4304 |
6593 |
243 |
|
3×3/0 |
413 |
2 |
8 |
0.150 |
3.8 |
0.250 |
6.4 |
2.62 |
66.5 |
5200 |
7738 |
279 |
|
3×4/0 |
532 |
1 |
8 |
0.150 |
3.8 |
0.250 |
6.4 |
2.75 |
69.8 |
5840 |
8713 |
321 |
|
3×250 |
608 |
1/0 |
6 |
0.150 |
3.8 |
0.250 |
6.4 |
2.89 |
73.4 |
6774 |
9948 |
355 |
|
3×300 |
741 |
1/0 |
6 |
0.150 |
3.8 |
0.265 |
6.7 |
3.04 |
77.2 |
7423 |
11384 |
398 |
|
3×350 |
888 |
2/0 |
6 |
0.150 |
3.8 |
0.280 |
7.1 |
3.21 |
81.3 |
8543 |
12739 |
435 |
|
3×500 |
1221 |
4/0 |
6 |
0.150 |
3.8 |
0.295 |
7.5 |
3.56 |
90.4 |
11260 |
16757 |
536 |
Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
