| Applications | These cables are designed for connections between units of mine distribution systems, suitable forinstalled in duct, conduit or open air and for direct burial in wet and dry locations. |
| Standards | ICEA S-75-381/NEMA WC 58 ASTM B-8 CAN/CSA-C22.2 No.96 |

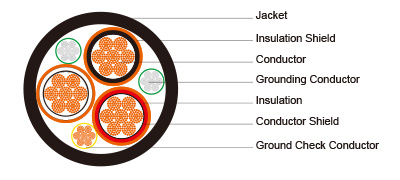

| Construction | |
| Conductors | Stranded annealed bare copper conductor. |
| Conductor Shield | Conducting layer. |
| Insulation | Ethylene Propylene Rubber (EPR). |
| Insulation Shield | Conducting layer + copper tape. |
| Ground Check Conductor | Copper conductor with a yellow polypropylene insulation. |
| Grounding Conductor | Tinned copper conductor. |
| Jacket | Chlorinated Polyethylene(CPE), black. |
| Options | Other jacket materials such as CSP/PCP/NBR/PVC are available upon request. Two-layer jacket with reinforcing fibre between the two layers can be offered as an option. |
| Mechanical and Thermal Properties | Minimum Bending Radius: 12×OD Maximum Operating Temperature: +90℃ |
Dimensions and Weight:
|
Construction |
No. of Strands |
Grounding Conductor Size |
Ground Check Conductor SizeL |
Nominal Insulation Thickness |
Nominal Jacket Thickness |
Nominal Overall Diameter |
Nominal Weight |
Ampacity |
||||
|
No. of cores×AWG/kcmil |
- |
AWG/kcmil |
AWG/KCMI |
inch |
mm |
inch |
mm |
inch |
mm |
lbs/kft |
kg/km |
A |
|
3×2 |
7 |
6 |
8 |
0.175 |
4.4 |
0.14 |
3.6 |
1.90 |
48.3 |
2517 |
3745 |
164 |
|
3×1 |
19 |
5 |
8 |
0.175 |
4.4 |
0.14 |
3.6 |
1.99 |
50.6 |
3023 |
4498 |
187 |
|
3×1/0 |
19 |
4 |
8 |
0.175 |
4.4 |
0.14 |
3.6 |
2.07 |
52.6 |
3296 |
4904 |
215 |
|
3×2/0 |
19 |
3 |
8 |
0.175 |
4.4 |
0.14 |
3.6 |
2.16 |
54.9 |
3679 |
5474 |
246 |
|
3×3/0 |
19 |
2 |
8 |
0.175 |
4.4 |
0.14 |
3.6 |
2.27 |
57.7 |
3878 |
5771 |
283 |
|
3×4/0 |
19 |
1 |
8 |
0.175 |
4.4 |
0.14 |
3.6 |
2.39 |
60.7 |
5146 |
7656 |
325 |
|
3×250 |
37 |
1/0 |
8 |
0.175 |
4.4 |
0.14 |
3.6 |
2.48 |
63.0 |
5618 |
8359 |
359 |
|
3×350 |
37 |
2/0 |
8 |
0.175 |
4.4 |
0.14 |
3.6 |
2.70 |
68.6 |
7055 |
10496 |
438 |
|
3×500 |
37 |
4/0 |
8 |
0.175 |
4.4 |
0.17 |
4.3 |
3.08 |
78.2 |
9405 |
13993 |
536 |
Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
