| Application and Description | These cables are designed for use in lighting and power applications. Suitable for use in circuits not exceeding 600 volts at conductor temperatures not exceeding 90°C in wet and dry locations. May be installed in raceways, duct, cable tray, direct burial and aerial installations. Sizes 1/0 AWG and larger can be installed in cable tray. |

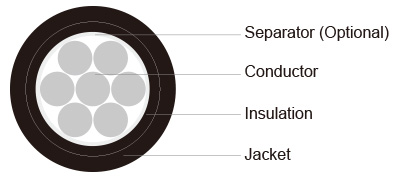

| Cable Construction | |
| Conductor | Class B stranded, soft annealed, tin coated copper in accordance witd ASTM B33 and B8 and ICEA. |
| Separator (Optional) | A suitable opaque separator tape used over tde conductor to facilitate stripping. |
| Insulation | Ethylene Propylene Rubber compound (EPR). |
| Jacket | Heavy duty, oil-resistant Chlorosulfonated Polyetdylene (CSP); VW-1 Rated. |
| Color | upon request, black is preferable |
Cable Parameter
|
AWG OR KCMIL |
STRAND |
NOMINAL INSULATION INCH/MM |
NOMINAL JACKET INCH/MM |
NOMINAL OVERALL DIAMETER INCH/MM |
CABLE WEIGHT LBS/KFT KG/KM |
||||
|
14 |
7 |
0.030 |
0.76 |
0.015 |
0.38 |
0.175 |
4.45 |
25 |
37 |
|
12 |
7 |
0.030 |
0.76 |
0.015 |
0.38 |
0.190 |
4.83 |
33 |
49 |
|
10 |
7 |
0.030 |
0.76 |
0.015 |
0.38 |
0.215 |
5.46 |
47 |
70 |
|
8 |
7 |
0.045 |
1.14 |
0.015 |
0.38 |
0.275 |
6.99 |
75 |
112 |
|
6 |
7 |
0.045 |
1.14 |
0.030 |
0.76 |
0.345 |
8.76 |
120 |
179 |
|
4 |
7 |
0.045 |
1.14 |
0.030 |
0.76 |
0.395 |
10.03 |
176 |
262 |
|
2 |
7 |
0.045 |
1.14 |
0.030 |
0.76 |
0.455 |
11.56 |
262 |
390 |
|
1/0 |
19 |
0.055 |
1.40 |
0.045 |
1.14 |
0.585 |
14.86 |
420 |
625 |
|
2/0 |
19 |
0.055 |
1.40 |
0.045 |
1.14 |
0.630 |
16.00 |
517 |
769 |
|
3/0 |
19 |
0.055 |
1.40 |
0.045 |
1.14 |
0.680 |
17.27 |
650 |
967 |
|
4/0 |
19 |
0.055 |
1.40 |
0.045 |
1.14 |
0.740 |
18.80 |
779 |
1159 |
|
250 |
37 |
0.065 |
1.65 |
0.065 |
1.65 |
0.845 |
21.46 |
952 |
1416 |
|
300 |
37 |
0.065 |
1.65 |
0.065 |
1.65 |
0.900 |
22.86 |
1290 |
1919 |
|
350 |
37 |
0.065 |
1.65 |
0.065 |
1.65 |
0.950 |
24.13 |
1280 |
1904 |
|
500 |
37 |
0.065 |
1.65 |
0.065 |
1.65 |
1.080 |
27.43 |
1770 |
2633 |
|
750 |
61 |
0.080 |
2.03 |
0.065 |
1.65 |
1.290 |
32.77 |
2630 |
3913 |
|
1000 |
61 |
0.080 |
2.03 |
0.065 |
1.65 |
1.445 |
36.70 |
3440 |
5118 |
