| Application and Description | These insulated wires are determined for installation to tube inside of apparatus as well as for the protective laying to the lightings, in dry rooms, in production facilities, switch and distributors boards, in tubes, under and surface mounting of plasters. |
| Standard and Approval | NF C 32-201-3 CE Low Voltage Directive 73/23/EEC and 93/68/EEC ROHS compliant |

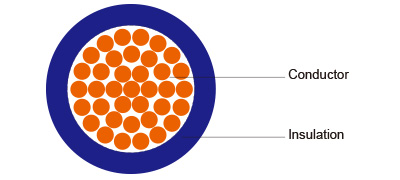

| Cable Construction | 1 Fine bare copper strands Strands to VDE-0295 Class-5, IEC 60228 Class-5 2 Special PVC TI1 core insulation Cores to VDE-0293 colors on chart |
| Technical Characteristics | WORKING VOLTAGE: 300/500v TEST VOLTAGE: 2000 volts FLEXING BENDING RADIUS: 12.5 x Ø STATIC BENDING RADIUS: 12.5 x Ø FLEXING TEMPERATURE: -5ºC to +70ºC STATIC TEMPERATURE: -30ºC to +80ºC FLAME RETARDANT: NF C 32-070 INSULATION RESISTANCE: 10 MΩ x km |
Cable Parameter
|
AWG |
NO. OF CORES X NOMINAL CROSS SECTIONAL AREA |
NOMINAL THICKNESS OF INSULATION |
NOMINAL OVERALL DIAMETER |
NOMINAL COPPER WEIGHT |
NOMINAL WEIGHT |
|
|
# X MM² |
MM |
MM |
KG/KM |
KG/KM |
|
20(16/32) |
1 x 0.5 |
0.6 |
2.1 |
4.9 |
10 |
|
18(24/32) |
1 x 0.75 |
0.6 |
2.4 |
7.2 |
13 |
|
17(32/32) |
1 x 1 |
0.6 |
2.6 |
9.6 |
15 |
