Application and Description | These are suitable to be installed for laying in tubes, under and surface mounting of plaster and also in closed installation conduits. These are not allowed to install for direct laying on cable trays, channel or tanks. These types are permitted for inner wiring of equipment, distributor and switchboards and also for protective laying to lightings witd a nominal voltage up to 1000 V alternating current or up to 750 V direct current against earthed. |
Standard and Approval | NF C 32-201-3 CE Low Voltage Directive 73/23/EEC and 93/68/EEC ROHS compliant |

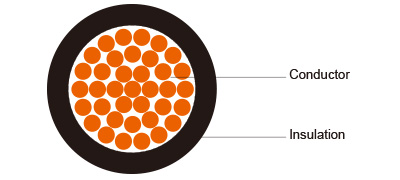

Cable Construction | 1 Fine bare copper strands Strands to VDE-0295 Class-5, IEC 60228 Class-5 2 Special PVC TI1 core insulation Cores to VDE-0293 colors on chart |
Technical Characteristics | WORKING VOLTAGE: 450/750V TEST VOLTAGE: 2500 volts FLEXING BENDING RADIUS: 12.5 x Ø STATIC BENDING RADIUS: 12.5 x Ø FLEXING TEMPERATURE: -5º C to +70º C STATIC TEMPERATURE: -30º C to +80º C SHORT CIRCUIT TEMPERATURE: +160º C FLAME RETARDANT: NF C 32-070 INSULATION RESISTANCE: 10 MΩ x km |
Cable Parameter
AWG |
NO. OF CORES X NOMINAL CROSS SECTIONAL AREA |
NOMINAL THICKNESS OF INSULATION |
NOMINAL OVERALL DIAMETER |
NOMINAL COPPER WEIGHT |
NOMINAL WEIGHT |
|
# X MM² |
MM |
MM |
KG/KM |
KG/KM |
16(30/30) |
1 x 1.5 |
0,7 |
3.1 |
14.4 |
20 |
14(50/30) |
1 x 2.5 |
0,8 |
3.6 |
24.0 |
31 |
12(56/28) |
1 x 4 |
0,8 |
4.3 |
38.0 |
48 |
10(84/28) |
1 x 6 |
0,8 |
4.9 |
58.0 |
69 |
8(80/26) |
1 x 10 |
1,0 |
6.4 |
96.0 |
121 |
6(128/26) |
1 x 16 |
1,0 |
8.1 |
154.0 |
211 |
4(200/26) |
1 x 25 |
1,2 |
9.8 |
240 |
303 |
2 (280/26) |
1 x 35 |
1,2 |
11.1 |
336 |
417 |
1 (400/26) |
1 x 50 |
1,4 |
13.1 |
480 |
539 |
2/0 (356/24) |
1 x 70 |
1,4 |
15.5 |
672 |
730 |
3/0 (485/24) |
1 x 95 |
1,6 |
17.2 |
912 |
900 |
4/0 (614/24) |
1 x 120 |
1,6 |
19.7 |
1152 |
1135 |
300 MCM (765/24) |
1 x 150 |
1,8 |
21.3 |
1440 |
1410 |
350 MCM (944/24) |
1 x 185 |
2,0 |
23.4 |
1776 |
1845 |
500MCM(1225/24) |
1 x 240 |
2,2 |
27.1 |
2304 |
2270 |
