RE-2Y(St)HSWAH-TiMF 70°C / 300 V
| STANDARDS | Basic design to EN50288-7 |
| APPLICATION: | Instrument cable minimizes noise and signal interference, delivering clean signals in harsh environments and general manufacturing operations. |
FIRE PERFORMANCE
|
Flame Retardance (Single Vertical Wire Test) |
EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
|
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) |
EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
|
Halogen Free |
IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1* |
|
No Corrosive Gas Emission |
IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2* |
|
Minimum Smoke Emission |
IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
|
No Toxic gases |
NES 02-713; NF C 20-454 |
|
Sunlight Resistance |
UL 1581 section 1200 |
|
Oil Resistance |
ICEA S-73-532** |
Note: Asterisk * denotes superseded standard, **Test temperature +60°C, duration 4h. Retention: min 60% of tensite strength/min.60% of elongation.
| VOLTAGE RATING | 300V |

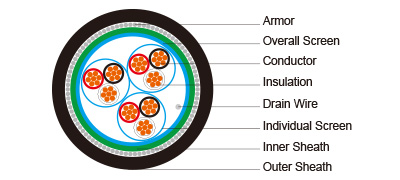

| CABLE CONSTRUCTION | |
| Conductor: | Annealed copper solid or plain copper stranded to IEC 60228 Class 2. |
| Insulation: | PE compound, EN 50290. 2-23. |
| Individual Screen: | Aluminium/polyester tape is applied over each pair metallic side down in contact with tinned copper drain wire, 0.5mm² |
| Pair: | Two conductors twisted to form a pair |
| Lay-up: | Pairs laid up in layers of optimum pitch |
| Separator: | Polyester tape |
| Overall Screen: | Aluminium/polyester tape with tinned copper drain wire, 0.5mm2 |
| Inner sheath: | HFFR compound, EN 50290-2-27 |
| Armour: | Galvenized round steel wire, EN 10257-1 |
| Outer Sheath: | Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. |
| COLOUR CODE | |
| Insulation: | Black / White / Red, continuously numbered on white core(1, 2..)for multitriples. |
| Outer Sheath: | Black or blue for intrinsically safe systems |
| Physical AND THERMAL PROPERTIES | |
| Temperature Range During Operation (Fixed State): | -30°C – +70°C |
| Temperature Range During Installation (Mobile State): | -5°C – +50°C |
| Minimum Bending Radius: | 10 X Overall Diameter |
CONSTRUCTION PARAMETERS
|
Cable Code |
RE-2Y(St)HSWAH-TiMF |
|||||||
|
No. of Triples 3xCross Section |
Nominal Insulation Thick-ness |
Nominal Inner Sheath Thick-ness |
Nominal Overall Diameter Over Inner Sheath |
Nominal Armour Wire Diameter |
Nominal Outer Sheath Thick -ness |
Nominal OverallDiameter |
Approx. Weight |
|
|
No.x3xmm2 |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
|
|
0.5mm2, Multitriple |
||||||||
|
RE-2Y(St)HSWAH-TiMF 2T0.5 |
2x3x0.5 |
0.35 |
1.0 |
9.7 |
0.9 |
1.4 |
14.3 |
363 |
|
RE-2Y(St)HSWAH-TiMF 4T0.5 |
4x3x0.5 |
0.35 |
1.0 |
11.1 |
0.9 |
1.4 |
15.7 |
456 |
|
RE-2Y(St)HSWAH-TiMF 5T0.5 |
5x3x0.5 |
0.35 |
1.1 |
12.4 |
0.9 |
1.5 |
17.2 |
517 |
|
RE-2Y(St)HSWAH-TiMF 6T0.5 |
6x3x0.5 |
0.35 |
1.1 |
14.0 |
0.9 |
1.5 |
18.8 |
612 |
|
RE-2Y(St)HSWAH-TiMF 8T0.5 |
8x3x0.5 |
0.35 |
1.1 |
14.9 |
0.9 |
1.5 |
19.7 |
800 |
|
RE-2Y(St)HSWAH-TiMF 10T0.5 |
10x3x0.5 |
0.35 |
1.2 |
17.0 |
1.25 |
1.6 |
22.7 |
951 |
|
RE-2Y(St)HSWAH-TiMF 12T0.5 |
12x3x0.5 |
0.35 |
1.2 |
17.6 |
1.25 |
1.6 |
23.3 |
978 |
|
RE-2Y(St)HSWAH-TiMF 16T0.5 |
16x3x0.5 |
0.35 |
1.3 |
20.1 |
1.25 |
1.7 |
26.0 |
1201 |
|
RE-2Y(St)HSWAH-TiMF 20T0.5 |
20x3x0.5 |
0.35 |
1.4 |
22.3 |
1.25 |
1.7 |
28.2 |
1394 |
|
RE-2Y(St)HSWAH-TiMF 24T0.5 |
24x3x0.5 |
0.35 |
1.5 |
24.4 |
1.25 |
1.8 |
30.5 |
1607 |
|
0.75mm2, Multitriple |
||||||||
|
RE-2Y(St)HSWAH-TiMF 2T0.75 |
2x3x0.75 |
0.38 |
1.0 |
10.6 |
0.9 |
1.4 |
15.2 |
418 |
|
RE-2Y(St)HSWAH-TiMF 4T0.75 |
4x3x0.75 |
0.38 |
1.1 |
12.4 |
0.9 |
1.5 |
17.2 |
521 |
|
RE-2Y(St)HSWAH-TiMF 5T0.75 |
5x3x0.75 |
0.38 |
1.1 |
13.7 |
0.9 |
1.5 |
18.5 |
608 |
|
RE-2Y(St)HSWAH-TiMF 6T0.75 |
6x3x0.75 |
0.38 |
1.1 |
15.4 |
0.9 |
1.5 |
20.2 |
820 |
|
RE-2Y(St)HSWAH-TiMF 8T0.75 |
8x3x0.75 |
0.38 |
1.2 |
16.7 |
0.9 |
1.6 |
21.7 |
942 |
|
RE-2Y(St)HSWAH-TiMF 10T0.75 |
10x3x0.75 |
0.38 |
1.3 |
19.0 |
1.25 |
1.6 |
24.7 |
1104 |
|
RE-2Y(St)HSWAH-TiMF 12T0.75 |
12x3x0.75 |
0.38 |
1.3 |
19.7 |
1.25 |
1.7 |
25.6 |
1178 |
|
RE-2Y(St)HSWAH-TiMF 16T0.75 |
16x3x0.75 |
0.38 |
1.4 |
22.5 |
1.25 |
1.7 |
28.4 |
1441 |
|
RE-2Y(St)HSWAH-TiMF 20T0.75 |
20x3x0.75 |
0.38 |
1.5 |
24.9 |
1.25 |
1.8 |
31.0 |
1888 |
|
RE-2Y(St)HSWAH-TiMF 24T0.75 |
24x3x0.75 |
0.38> |
1.6 |
27.2 |
1.25 |
1.9 |
33.5 |
2168 |
|
1.0mm2, Multitriple |
||||||||
|
RE-2Y(St)HSWAH-TiMF 2T1.0 |
2x3x1 |
0.4 |
1.0 |
11.5 |
0.9 |
1.4 |
16.1 |
472 |
|
RE-2Y(St)HSWAH-TiMF 4T1.0 |
4x3x1 |
0.4 |
1.1 |
13.4 |
0.9 |
1.5 |
18.2 |
597 |
|
RE-2Y(St)HSWAH-TiMF 5T1.0 |
5x3x1 |
0.4 |
1.1 |
14.8 |
0.9 |
1.5 |
19.6 |
689 |
|
RE-2Y(St)HSWAH-TiMF 6T1.0 |
6x3x1 |
0.4 |
1.2 |
16.9 |
0.9 |
1.5 |
21.7 |
940 |
|
RE-2Y(St)HSWAH-TiMF 8T1.0 |
8x3x1 |
0.4 |
1.2 |
18.1 |
1.25 |
1.6 |
23.8 |
1035 |
|
RE-2Y(St)HSWAH-TiMF 10T1.0 |
10x3x1 |
0.4 |
1.3 |
20.7 |
1.25 |
1.7 |
26.6 |
1279 |
|
RE-2Y(St)HSWAH-TiMF 12T1.0 |
12x3x1 |
0.4 |
1.3 |
21.4 |
1.25 |
1.7 |
27.3 |
1383 |
|
RE-2Y(St)HSWAH-TiMF 16T1.0 |
16x3x1 |
0.4 |
1.4 |
24.4 |
1.25 |
1.7 |
30.3 |
1689 |
|
RE-2Y(St)HSWAH-TiMF 20T1.0 |
20x3x1 |
0.4 |
1.5 |
27.1 |
1.25 |
1.8 |
33.2 |
2204 |
|
RE-2Y(St)HSWAH-TiMF 24T1.0 |
24x3x1 |
0.4 |
1.6 |
29.6 |
1.6 |
1.9 |
36.6 |
2509 |
|
1.3mm2, Multitriple |
||||||||
|
RE-2Y(St)HSWAH-TiMF 2T1.3 |
2x3x1,3 |
0.45 |
1.1 |
12.8 |
0.9 |
1.5 |
17.6 |
532 |
|
RE-2Y(St)HSWAH-TiMF 4T1.3 |
4x3x1,3 |
0.45 |
1.1 |
14.7 |
0.9 |
1.5 |
19.5 |
685 |
|
RE-2Y(St)HSWAH-TiMF 5T1.3 |
5x3x1,3 |
0.45 |
1.2 |
16.5 |
0.9 |
1.6 |
21.5 |
925 |
|
RE-2Y(St)HSWAH-TiMF 6T1.3 |
6x3x1,3 |
0.45 |
1.3 |
18.8 |
1.25 |
1.6 |
24.5 |
1090 |
|
RE-2Y(St)HSWAH-TiMF 8T1.3 |
8x3x1,3 |
0.45 |
1.3 |
20.1 |
1.25 |
1.7 |
26.0 |
1250 |
|
RE-2Y(St)HSWAH-TiMF 10T1.3 |
10x3x1,3 |
0.45 |
1.4 |
23.0 |
1.25 |
1.8 |
29.1 |
1484 |
|
RE-2Y(St)HSWAH-TiMF 12T1.3 |
12x3x1,3 |
0.45 |
1.5 |
24.0 |
1.25 |
1.8 |
30.1 |
1595 |
|
RE-2Y(St)HSWAH-TiMF 16T1.3 |
16x3x1,3 |
0.45 |
1.6 |
27.4 |
1.25 |
1.9 |
33.7 |
2225 |
|
RE-2Y(St)HSWAH-TiMF 20T1.3 |
20x3x1,3 |
0.45 |
1.7 |
30.4 |
1.6 |
2.0 |
37.6 |
2596 |
|
RE-2Y(St)HSWAH-TiMF 24T1.3 |
24x3x1,3 |
0.45 |
1.8 |
33.1 |
1.6 |
2.0 |
40.3 |
2962 |
|
RE-2Y(St)HSWAH-TiMF 2T1.5 |
2x3x1,5 |
0.45 |
1.1 |
13.2 |
0.9 |
1.5 |
18.0 |
561 |
|
RE-2Y(St)HSWAH-TiMF 4T1.5 |
4x3x1,5 |
0.45 |
1.2 |
15.4 |
0.9 |
1.5 |
20.2 |
818 |
|
RE-2Y(St)HSWAH-TiMF 5T1.5 |
5x3x1,5 |
0.45 |
1.2 |
17.1 |
1.25 |
1.6 |
22.8 |
999 |
|
RE-2Y(St)HSWAH-TiMF 6T1.5 |
6x3x1,5 |
0.45 |
1.3 |
19.5 |
1.25 |
1.6 |
25.2 |
1164 |
|
RE-2Y(St)HSWAH-TiMF 8T1.5 |
8x3x1,5 |
0.45 |
1.4 |
21.1 |
1.25 |
1.7 |
27.0 |
1354 |
|
RE-2Y(St)HSWAH-TiMF 10T1.5 |
10x3x1,5 |
0.45 |
1.5 |
24.1 |
1.25 |
1.8 |
30.2 |
1596 |
|
RE-2Y(St)HSWAH-TiMF 12T1.5 |
12x3x1,5 |
0.45 |
1.5 |
24.9 |
1.25 |
1.8 |
31.0 |
1953 |
|
RE-2Y(St)HSWAH-TiMF 16T1.5 |
16x3x1,5 |
0.45 |
1.6 |
28.4 |
1.6 |
1.9 |
35.4 |
2388 |
|
RE-2Y(St)HSWAH-TiMF 20T1.5 |
20x3x1,5 |
0.45 |
1.7 |
31.6 |
1.6 |
2.0 |
38.8 |
2800 |
|
RE-2Y(St)HSWAH-TiMF 24T1.5 |
24x3x1,5 |
0.45 |
1.8 |
34.4 |
1.6 |
2.1 |
41.8 |
3100 |
Note : Other conductor sizes & core configurations are available upon request
Electrical PROPERTIES
|
Conductor Area Size |
mm 2 |
0.5 |
0.75 |
1.0 |
1.3 |
1.5 |
|
|
Insulation thickness (nominal) |
mm |
0.4 |
0.4 |
0.4 |
0.45 |
0.45 |
|
|
Conductor resistance (20°C) |
Ω/km |
36.7 |
25 |
18.5 |
14.2 |
12.3 |
|
|
Insulation resistance (20°C) |
MΩ.km(Min.) |
5000 |
|||||
|
Mutual Capacitance (1 kHz) |
pF/m(Max.) |
115 |
|||||
|
Inductance |
mH/km(Max.) |
1 |
|||||
|
Capacitance unbalance(1 kHz) |
pF/500 m (Max.) |
500 |
|||||
|
L / R (ratio) (max.) |
μH/Ω |
25 |
25 |
25 |
40 |
40 |
|
|
Operating voltage Urms |
V |
300 |
|||||
|
Test Voltage |
Core to Core |
V |
1500 |
||||
|
Core to Screen |
V |
1500 |
|||||
